Full Automatic PCB Panel Saw & Sorter
NSS-5000 / 6000
- Large PCB panel mechanical dicing & sorting system
Main Features
- Saw & sorter for large PCB panel(500x300mm)
- Capable for ultra thin package(0.1t)
- Compatible for 2 & 3inch blade
- Dual 2.4KW spindle
- Built-in PCB shrink compensation function
- Built-in PCB cleaning/air dry
- Built-in dimension & accuracy measuring vision
- Multi picker for high speed pick & place
- Dual multi picker for high capacity
- Click & position setting vision
상세설명
SPECIFICATIONS
| Items | NSS-5000 | NSS-6000 |
| Work Size | Max 500 * 300 FCB Plate | Max 500 * 300 FCB Plate |
| Work Piece Thickness | 0.8~3t ( thick PCB ) | 0.1~3t |
| Spindle | 2.4 KW Dual Air Bearing Spindle | 2.4 KW Dual Air Bearing Spindle |
| Blade | 3” Hubless Blade | 3” Hubless Blade |
| Dimension(WxDxH) | 4,200 x 1,900 x 1,900mm | 5,030 x 2,020 x 1,880mm |
| Material Input | Cassettes Magazine(3ea) | UTC(ultra thin carrier) |
| Inline-Out | Yes, Cleaning System | Yes, Cleaning System |
| Work Vacuum | 5HP Water Type Vacuum Pump | 5HP Water Type Vacuum Pump |
| Clean For After Sawing | Brush & Water Jet Cleaning | Brush & Water Jet Cleaning |
| Inspection Spec | Package Size / LTP / Shift | Package Size / LTP / Shift |

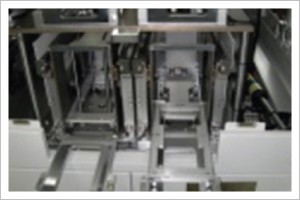

Tray Handler

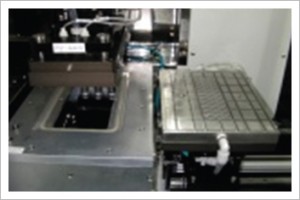

Package Cleaning

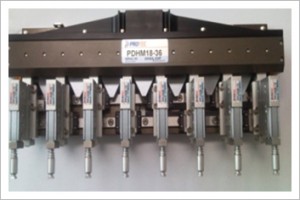

Multi Picker

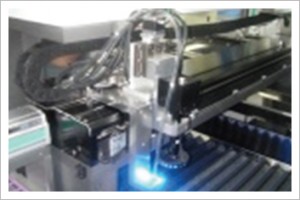

Inspection Vision

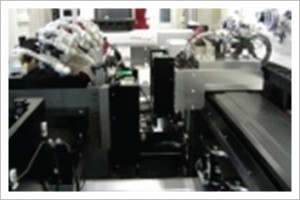

Dual multi Picker

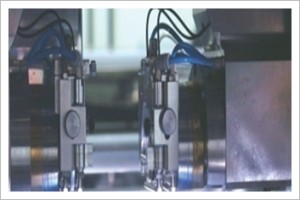

Dual Dicing Spindle
